DNMG Inserts Manufacturer & Supplier in China
Source standard and custom DNMG turning inserts for profiling, external turning, facing, and medium-to-finish cuts, with geometry and edge specification reviewed for the workpiece and setup.

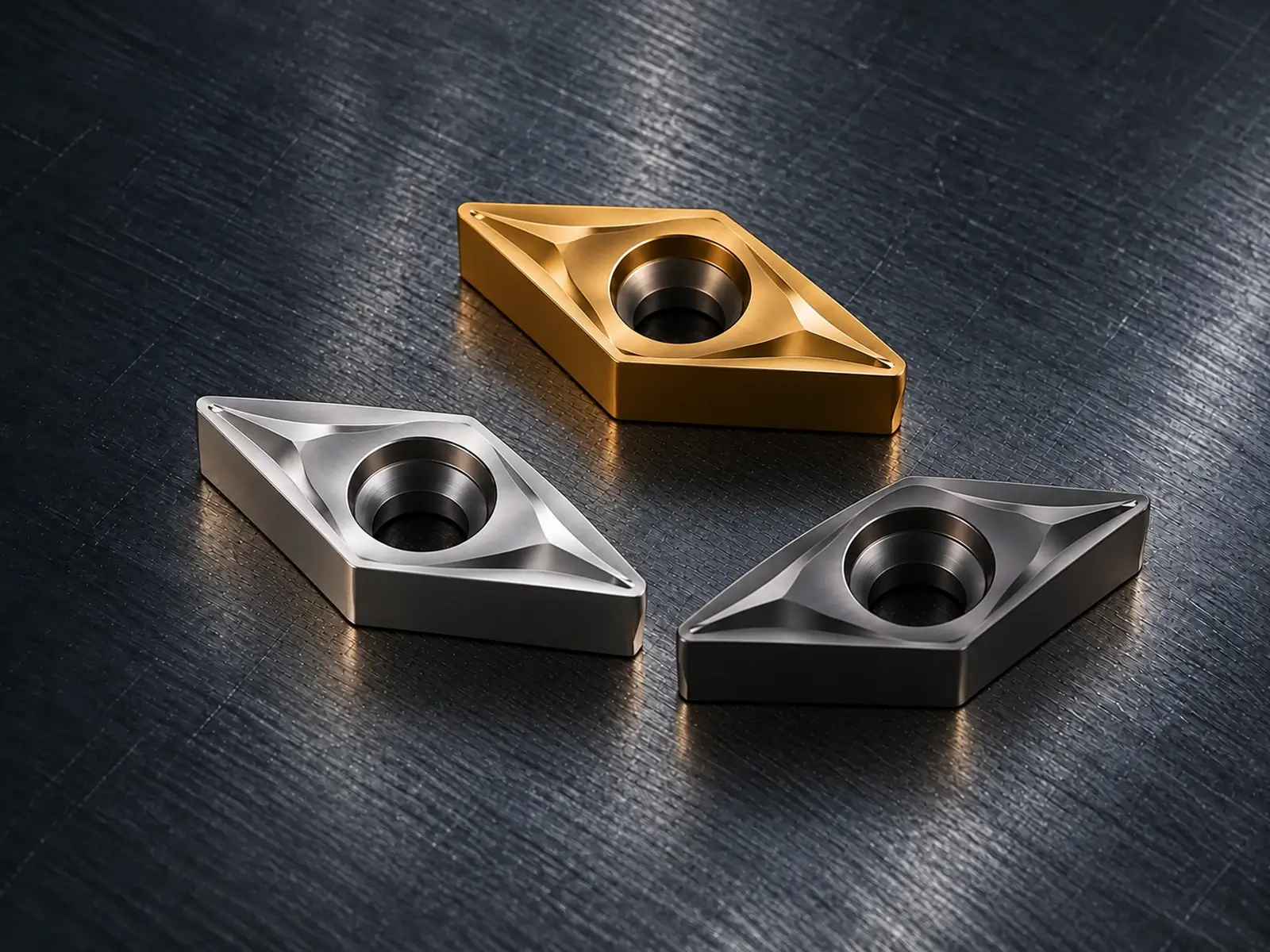

What Is a DNMG Insert?
A DNMG insert is an ISO 55° diamond, 0°-clearance, M-tolerance, double-sided turning insert with a fixing hole and chipbreaking geometry. Its acute diamond profile improves access for profiling and shoulder work compared with an 80° insert, while two corners per face provide up to four indexable cutting corners when the holder and chipbreaker permit both faces to be used.
Key Specifications
Insert Shape
55° diamond
Clearance Angle
0°
Tolerance Class
M class
Insert Configuration
Double-sided with fixing hole; up to 4 corners
Common ISO Sizes
DNMG 1104, 1504, 1506
Primary Applications
Profiling, external turning, facing, semi-finishing
Custom DNMG Insert Options
Configure the key manufacturing details for your insert application, from dimensions and cutting material to edge condition and identification.
Dimensions & Tolerances
Specify insert dimensions and tolerances according to your drawings.
Cutting Material & Grade
Select insert material and grade to suit your machining application.
Top Geometry & Chip Control
Customize top geometry and chip control features for your cutting needs.
Edge Preparation
Specify edge honing, chamfers and other edge preparation options.
Coating & Surface Treatment
Choose coating and surface treatments to meet your cutting needs.
Marking & Packaging
Customize insert markings and packaging to meet your order requirements.

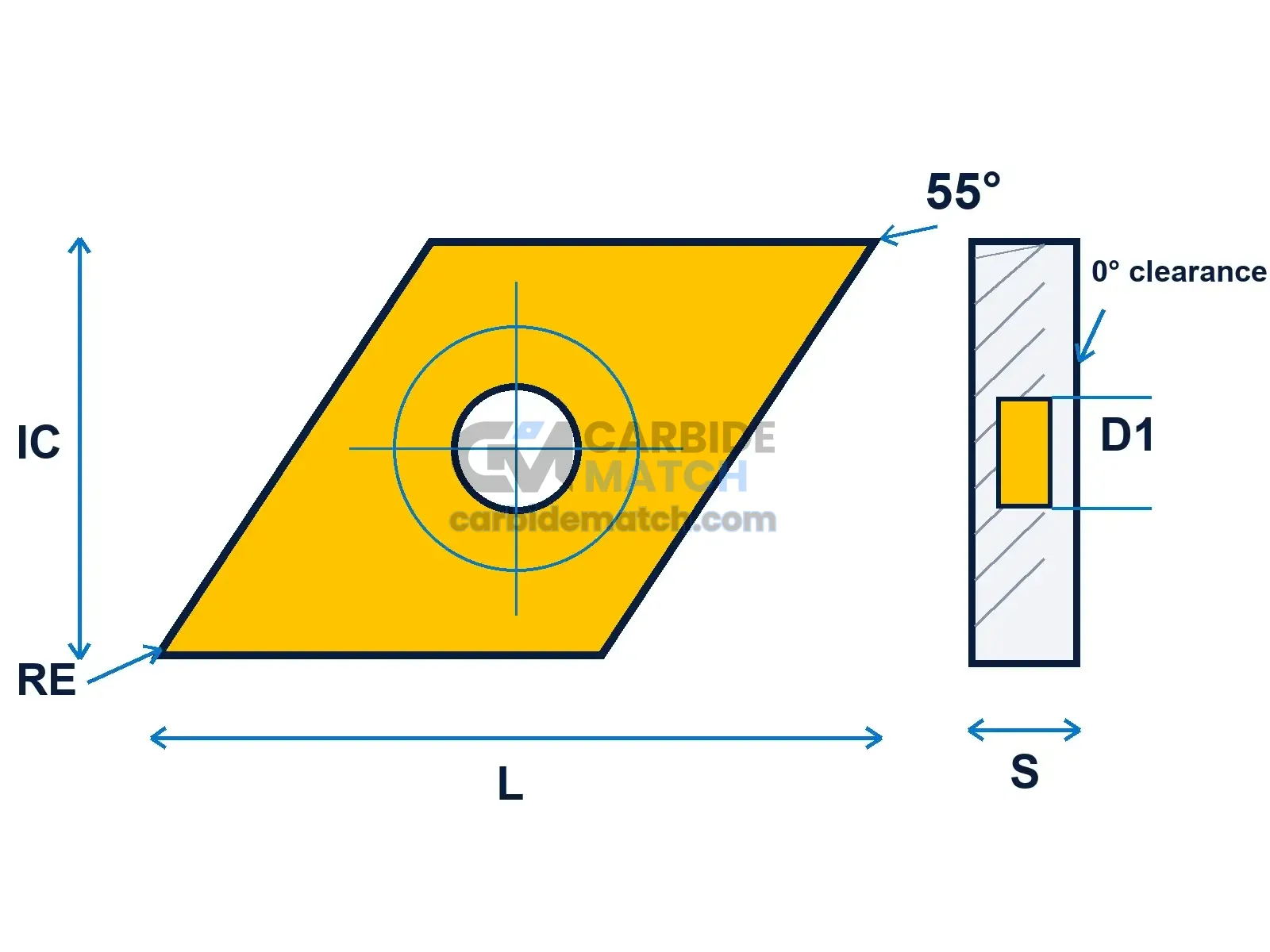

Available DNMG Insert Sizes
CarbideMatch offers DNMG inserts in the standard sizes listed below, with custom dimensions and application-specific configurations available upon request. Send us your required designation, drawing, dimensions, sample, workpiece material, or cutting conditions for technical review and quotation.
ISO Designation
IC (mm)
S (mm)
RE (mm)
D1 (mm)
DNMG 110404
9.525
4.76
0.4
3.81
DNMG 110408
9.525
4.76
0.8
3.81
DNMG 110412
9.525
4.76
1.2
3.81
DNMG 150404
12.7
4.76
0.4
5.16
DNMG 150408
12.7
4.76
0.8
5.16
DNMG 150412
12.7
4.76
1.2
5.16
DNMG 150416
12.7
4.76
1.6
5.16
DNMG 150604
12.7
6.35
0.4
5.16
DNMG 150608
12.7
6.35
0.8
5.16
DNMG 150612
12.7
6.35
1.2
5.16
DNMG 150616
12.7
6.35
1.6
5.16
Don't See the Configuration You Need?
The configurations shown above represent commonly requested options and may not include everything we can supply. Contact us to check another specification or discuss your custom requirements.
DNMG Insert Applications
DNMG inserts are commonly selected when contour access and profiling capability are required while retaining a double-sided negative insert construction.
Profiling
External contours and changing diameters that benefit from the 55° diamond access.
Shoulder Turning
Longitudinal and shoulder work using a compatible holder approach and adequate relief.
Facing
Facing cuts within the holder's permitted lead-angle range.
Semi-Finishing
Balanced stock removal and finish with an application-specific chipbreaker and radius.
Finishing
Lower-depth cuts when edge sharpness, radius, setup rigidity, and feed are controlled.
DNMG Insert FAQ
Why can DNMG be less robust than CNMG at the tip?
The 55° included angle provides better access but leaves less carbide behind the cutting corner than an 80° diamond, so edge preparation and cutting load require closer control.
What holder approach information is needed for DNMG selection?
Provide holder designation, hand, lead or approach angle, intended cut direction, and profile drawing to confirm access and avoid holder or trailing-edge interference.
How should 1504 and 1506 thicknesses be compared?
Seat compatibility must be checked first; the thicker 1506 format can support different load requirements but cannot be substituted solely because IC is the same.
Can DNMG make a back-facing cut?
Only if the holder geometry, hand, clamping, clearance, and toolpath are designed for that direction; send the operation sketch for confirmation.
What information helps diagnose DNMG tip breakage?
Provide wear photos, work material and hardness, entry and exit conditions, depth, feed, speed, coolant, overhang, and whether failure occurs at impact or during steady cutting.
Can custom DNMG edge honing be specified?
Yes, an edge-preparation target can be reviewed, but it should be tied to material, interruption level, coating process, and the inspection method used to verify the edge.
