RPMT Milling Inserts Manufacturer & Supplier in China
Source standard and custom RPMT round positive milling inserts for profiling, copy milling, cavity machining, and general milling, with cutter fit, grade, coating, and chipbreaker selected for the work material and engagement.

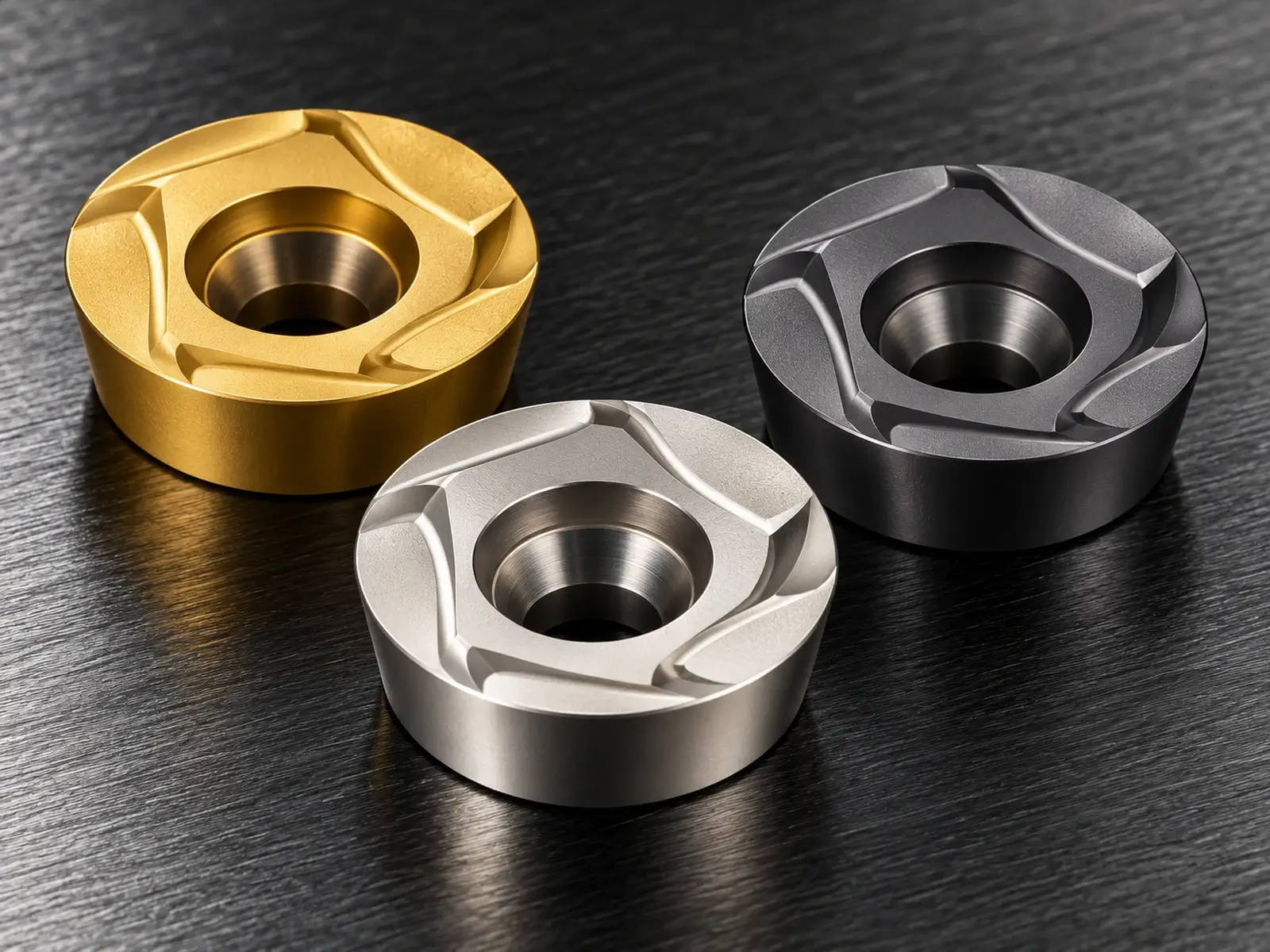

What Is a RPMT Milling Insert?

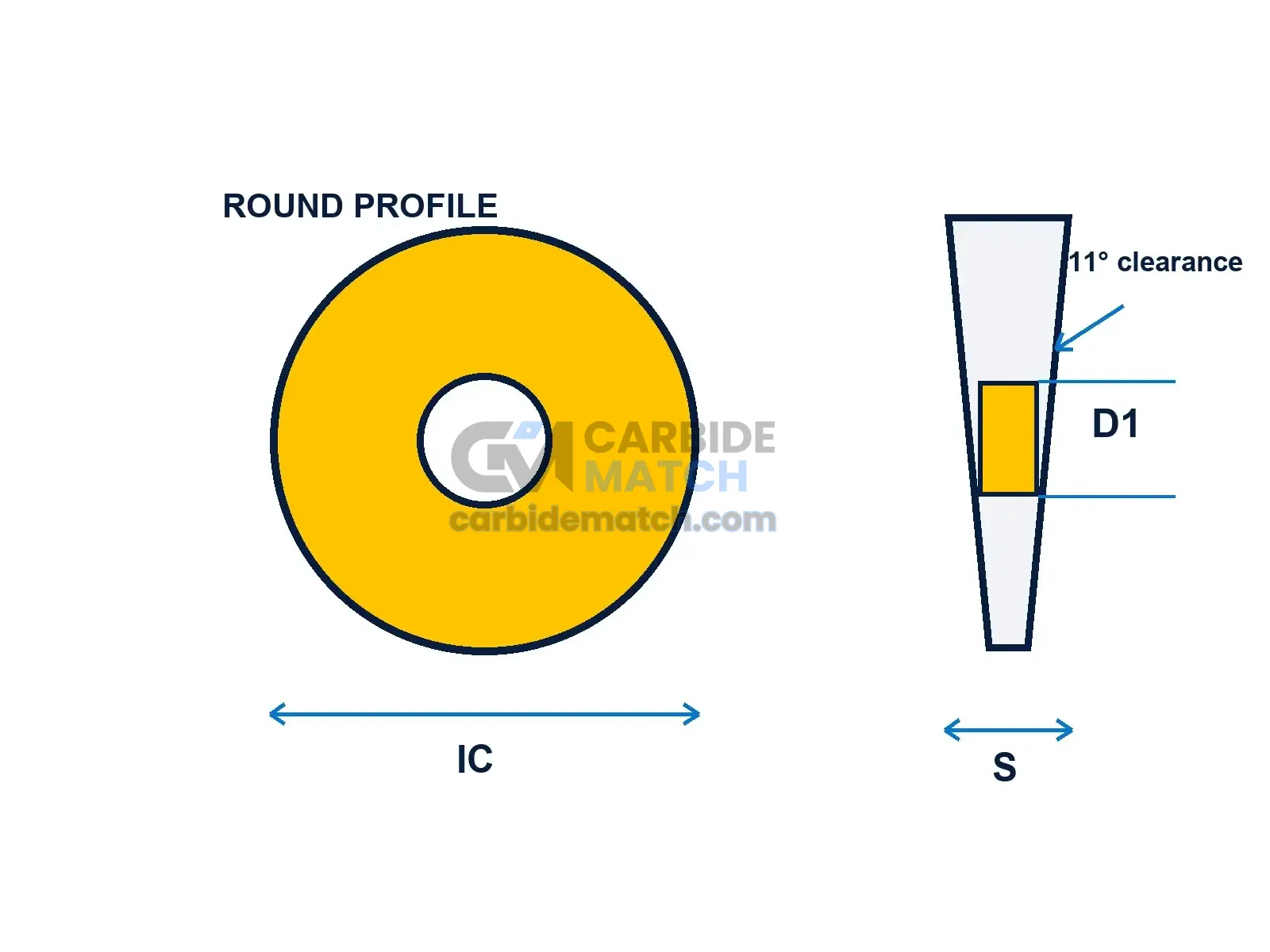

An RPMT insert is an ISO round milling insert with 11° clearance, M-class tolerance, and a fixing-hole/chip-forming configuration. Its circular positive cutting edge allows progressive indexing, but the usable number of positions is determined by the cutter pocket and chipbreaker orientation.
Key Specifications
Insert Shape
Round
Clearance Angle
11°
Tolerance Class
M class
Insert Configuration
Positive, single-sided round insert with fixing hole
Available Base Sizes
08T2, 10T3, 1204, and 1604/1606 families
Primary Applications
Profiling, copy milling, cavity milling, general milling
Custom RPMT Insert Options
Configure the key manufacturing details for your insert application, from dimensions and cutting material to edge condition and identification.
Dimensions & Tolerances
Specify insert dimensions and tolerances according to your drawings.
Cutting Material & Grade
Select insert material and grade to suit your machining application.
Top Geometry & Chip Control
Customize top geometry and chip control features for your cutting needs.
Edge Preparation
Specify edge honing, chamfers and other edge preparation options.
Coating & Surface Treatment
Choose coating and surface treatments to meet your cutting needs.
Marking & Packaging
Customize insert markings and packaging to meet your order requirements.
Available RPMT Milling Insert Sizes
Available RPMT base designations are listed below with nominal dimensions. Confirm the complete suffix, tool pocket, clamping components, grade, edge preparation, and application requirements before ordering.
ISO Designation
IC (mm)
S (mm)
D1 (mm)
Index Positions
RPMT 08T2M0E-JS
8
2.78
2.94
Cutter-dependent
RPMT 10T3M0E-JS
10
3.97
4.4
Cutter-dependent
RPMT 1204M0E-JS
12
4.76
4.4
Cutter-dependent
RPMT 1606M0E-JS
16
6.35
5.5
Cutter-dependent
RPMT 100T3
10
3.97
4
Cutter-dependent
RPMT 1204MO-MR
12
4.76
4.45
Cutter-dependent
RPMT 1604MO-MM
16
4.76
5.6
Cutter-dependent
Don't See the Configuration You Need?
The configurations shown above represent commonly requested options and may not include everything we can supply. Contact us to check another specification or discuss your custom requirements.
RPMT Milling Insert Applications
RPMT inserts are selected as part of a complete cutter system. Application suitability depends on the cutter body, pocket geometry, work material, engagement, machine rigidity, and manufacturer limits.
Profile Milling
Follows curved surfaces while distributing engagement around a round cutting edge.
Copy Milling
Machines three-dimensional contours using toolpaths and stepovers suited to the cutter diameter.
Cavity Roughing
Removes material in pockets where the cutter system supports the planned entry and chip flow.
Corner Blending
Blends transitions with a round edge while controlling cusp height and tool deflection.
General Milling
Handles robust roughing or semi-finishing when grade and geometry match the material and engagement.
RPMT Milling Insert FAQ
How many times can an RPMT insert be indexed?
Do not assume a universal count. Pocket support, clamp position, chipbreaker orientation, damaged zones, and the cutter maker's indexing marks determine usable positions.
Why does an RPMT insert create different cusp heights at the same feed?
Cutter diameter, effective radius, lead geometry, radial stepover, axial depth, tilt, runout, and toolpath direction all affect the resulting cusp.
What indicates that the RPMT grade is too brittle?
Repeated microchipping, edge fracture at entry or exit, thermal cracking, or sudden failure before normal flank wear suggests reviewing toughness and cutting conditions.
Can RPMT 1204 fit every cutter marked for a 12 mm round insert?
No. Hole diameter, thickness, clearance, pocket support, screw, chipbreaker, edge location, and complete suffix must agree with the cutter specification.
How should insert rotation be controlled during a long production run?
Use a fixed indexing sequence, mark or record each position, inspect the seat, clean the pocket, and replace the screw when its condition or torque retention is doubtful.
What inspection data help reproduce a custom RPMT insert?
Provide IC, thickness, hole and countersink, clearance, edge profile, chipbreaker datums, pocket contact areas, tolerances, coating mask requirements, and a verified cutter sample.
