HNMX Inserts Manufacturer & Supplier in China
Source HNMX face-milling inserts for standard production and custom projects, with seating geometry, edge form and grade direction matched to the cutter body and work material.

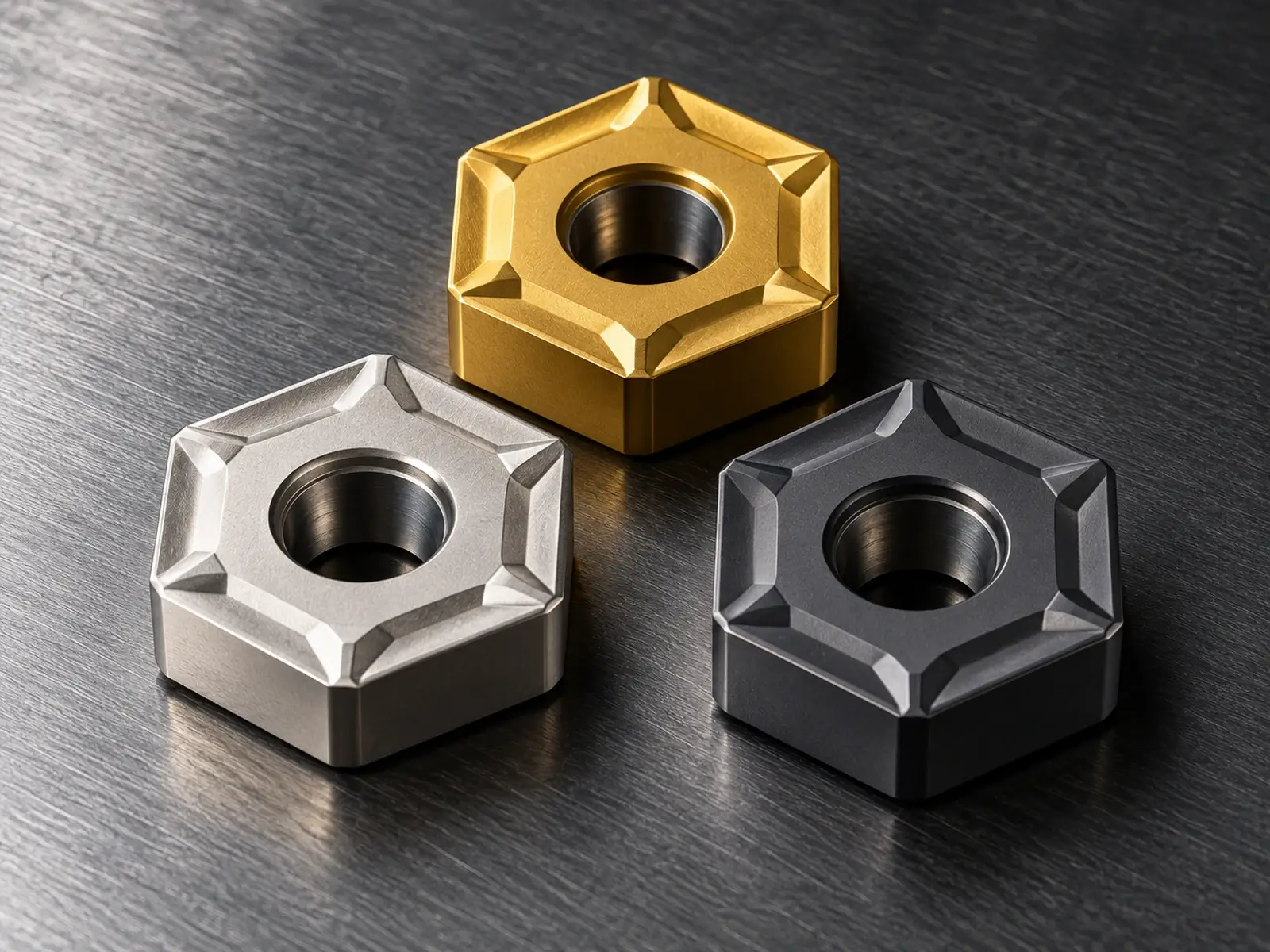

What Is a HNMX Insert?
HNMX is a hexagonal milling-insert family with nominal zero clearance, M-class tolerance and a special hole or chip-forming configuration. Double-sided variants are used in compatible face mills. HNMX0704 and HNMX0906 belong to different cutter interfaces, so the exact insert drawing governs selection.
Key Specifications
Insert Shape
Hexagonal face-milling form
Clearance Angle
0° nominal
Tolerance Class
M class
Insert Configuration
Double-sided with fixing hole; usable edge count is platform-specific
Common ISO Sizes
0704 and 0906
Primary Applications
Face Roughing, General Face Milling, Interrupted Facing
Custom HNMX Insert Options
Configure the key manufacturing details for your insert application, from dimensions and cutting material to edge condition and identification.
Dimensions & Tolerances
Specify insert dimensions and tolerances according to your drawings.
Cutting Material & Grade
Select insert material and grade to suit your machining application.
Top Geometry & Chip Control
Customize top geometry and chip control features for your cutting needs.
Edge Preparation
Specify edge honing, chamfers and other edge preparation options.
Coating & Surface Treatment
Choose coating and surface treatments to meet your cutting needs.
Marking & Packaging
Customize insert markings and packaging to meet your order requirements.

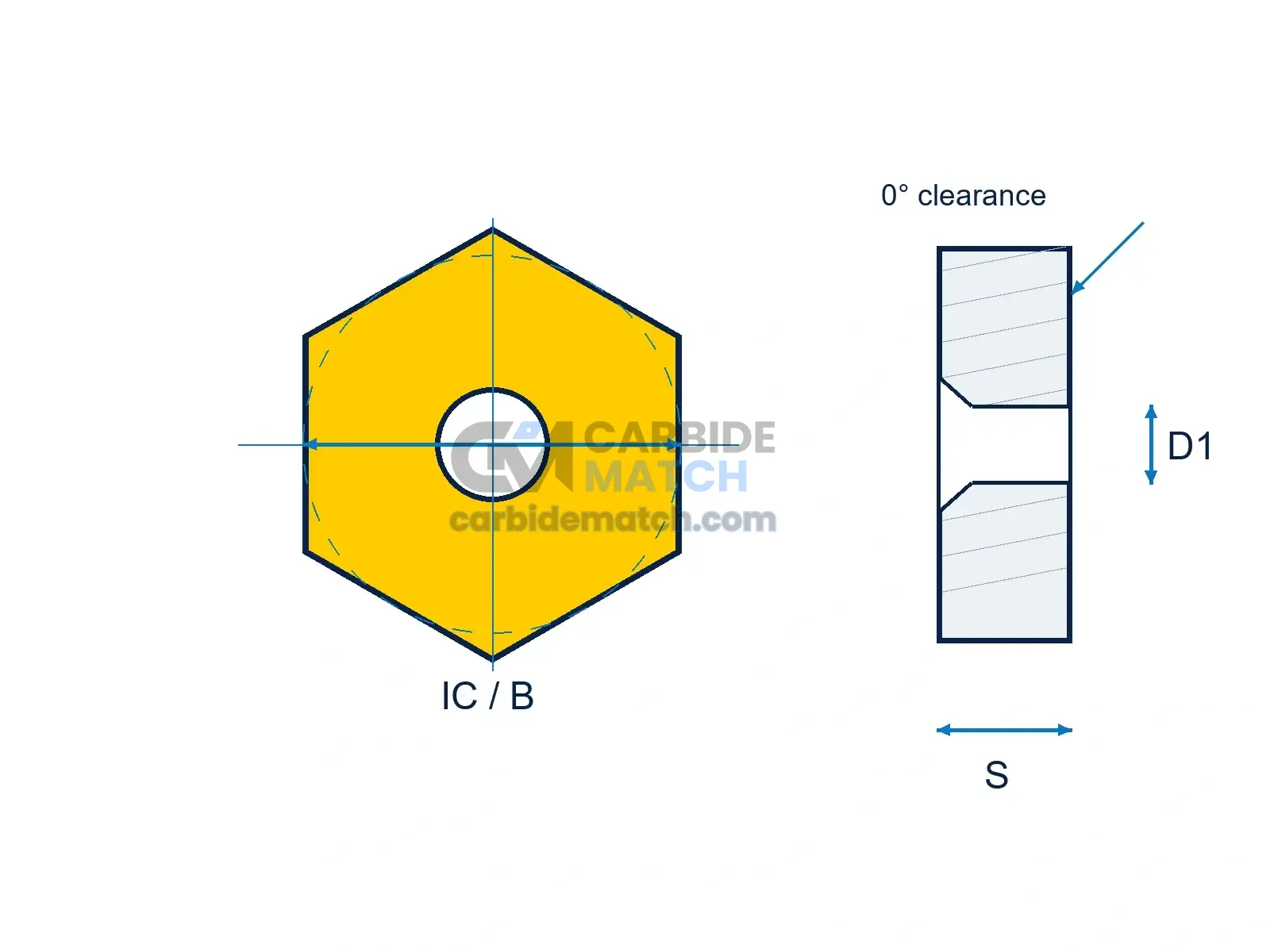

Available HNMX Milling Insert Sizes
CarbideMatch manufactures HNMX inserts in the standard sizes listed below and can review custom dimensions and application-specific configurations. Send your required designation, cutter model, drawing, sample, work material or cutting conditions for technical review and a quotation.
ISO Designation
Size IC/B (mm)
S (mm)
D1 (mm)
RE (mm)
HNMX 0704
12.7
4.45
4.9
1.2
HNMX 0906ANSN
16.5
6.34
4.9
1.2
Don't See the Configuration You Need?
The configurations shown above represent commonly requested options and may not include everything we can supply. Contact us to check another specification or discuss your custom requirements.
HNMX Insert Applications
Select the insert and cutter as a complete system. Review the operation, component geometry, machine rigidity and engagement before choosing the grade, coating and edge preparation.
Face Roughing
Removes stock from broad surfaces in compatible face-milling systems.
General Face Milling
Balances productivity and finish through suitable tooth pitch, grade and edge preparation.
Interrupted Facing
Machines interrupted surfaces after reviewing impact, engagement and edge toughness.
Semi-Finish Facing
Prepares a consistent face for the final operation with controlled axial runout and stock allowance.
HNMX Insert FAQ
Does a hexagonal outline guarantee twelve usable edges?
No. Relief features, wiper areas, pocket support and the mounting arrangement determine which edges are usable on each face.
Why can a double-sided insert still cut with a positive rake?
The rake face can be shaped positively while the insert body retains nominal zero clearance; the installed cutter orientation determines working angles.
What should be checked before turning an insert over?
Inspect the second face and seating pads for chip indentation, cracks and contamination, then clean the pocket and verify the permitted orientation.
Why does the exit side of the workpiece chip the insert?
A thin or unsupported exit can reverse the load abruptly. Review cutter offset, approach path, feed, edge preparation and workpiece support.
Can two HNMX sizes share the same fixing screw?
Matching a hole diameter alone is insufficient. Thread engagement, screw head, countersink contact, torque and clearance must match the cutter specification.
How should a face-milling acceptance trial be arranged?
Compare several passes using controlled stock allowance, work material, runout and toolpath, then record flatness, burrs, finish and wear by pocket.
