WNMG Inserts Manufacturer & Supplier in China
Source standard and custom WNMG turning inserts for stable external turning, facing, and roughing programs, with geometry, grade, coating, and edge preparation selected after application review.

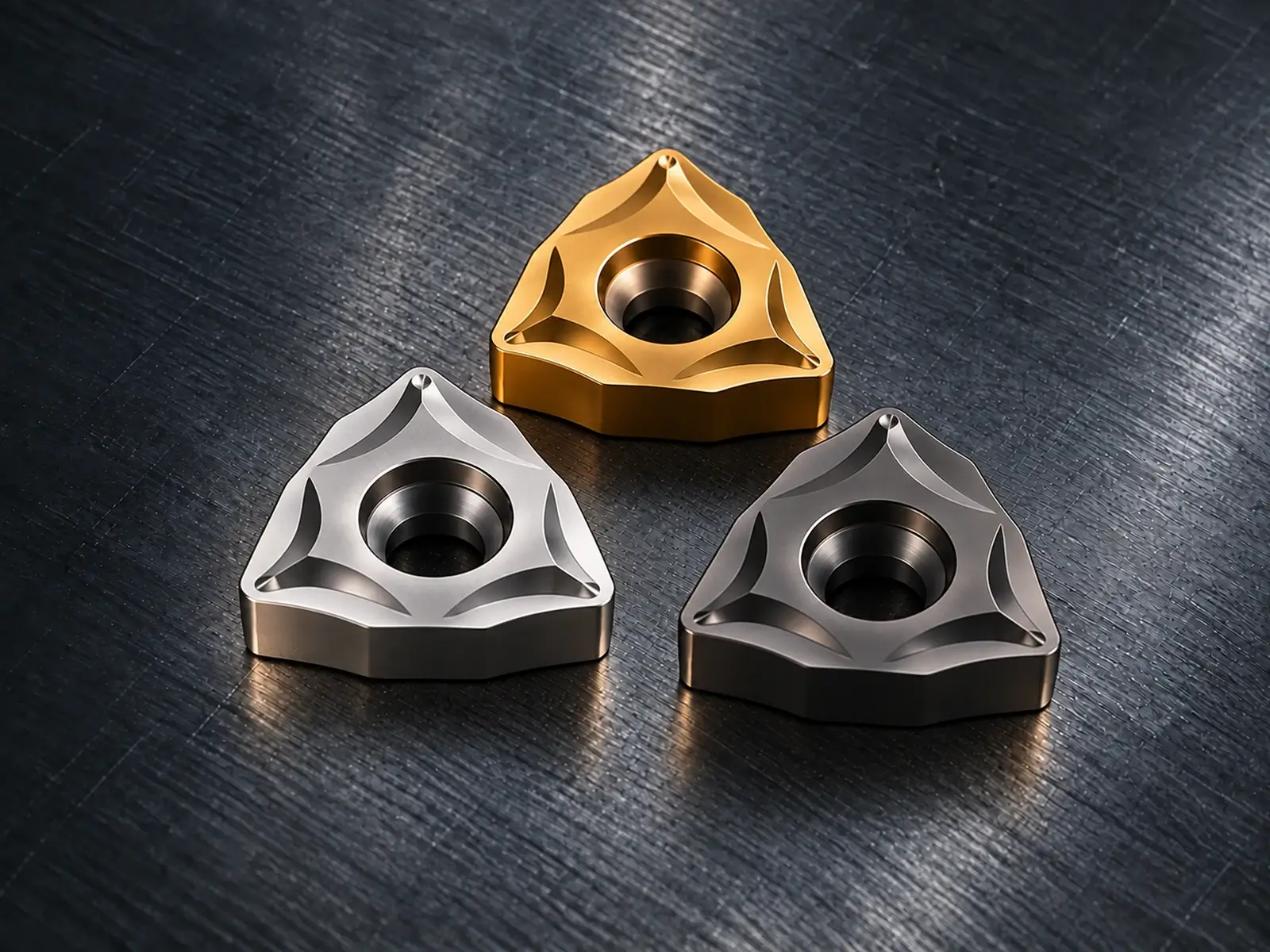

What Is a WNMG Insert?
A WNMG insert is an ISO 80° trigon, 0°-clearance, M-tolerance, double-sided turning insert with a fixing hole and chipbreaking geometry. Its three corners per face provide up to six indexable cutting corners, while the broad trigon shape supports stable general turning and roughing when matched to the correct holder, grade, and chipbreaker.
Key Specifications
Insert Shape
80° trigon
Clearance Angle
0°
Tolerance Class
M class
Insert Configuration
Double-sided with fixing hole; up to 6 corners
Common ISO Sizes
WNMG 0603, 0604, 06T3, 0804, 0806
Primary Applications
External turning, facing, semi-finishing, roughing
Custom WNMG Insert Options
Configure the key manufacturing details for your insert application, from dimensions and cutting material to edge condition and identification.
Dimensions & Tolerances
Specify insert dimensions and tolerances according to your drawings.
Cutting Material & Grade
Select insert material and grade to suit your machining application.
Top Geometry & Chip Control
Customize top geometry and chip control features for your cutting needs.
Edge Preparation
Specify edge honing, chamfers and other edge preparation options.
Coating & Surface Treatment
Choose coating and surface treatments to meet your cutting needs.
Marking & Packaging
Customize insert markings and packaging to meet your order requirements.
Available WNMG Insert Sizes
CarbideMatch offers WNMG inserts in the standard sizes listed below, with custom dimensions and application-specific configurations available upon request. Send us your required designation, drawing, dimensions, sample, workpiece material, or cutting conditions for technical review and quotation.

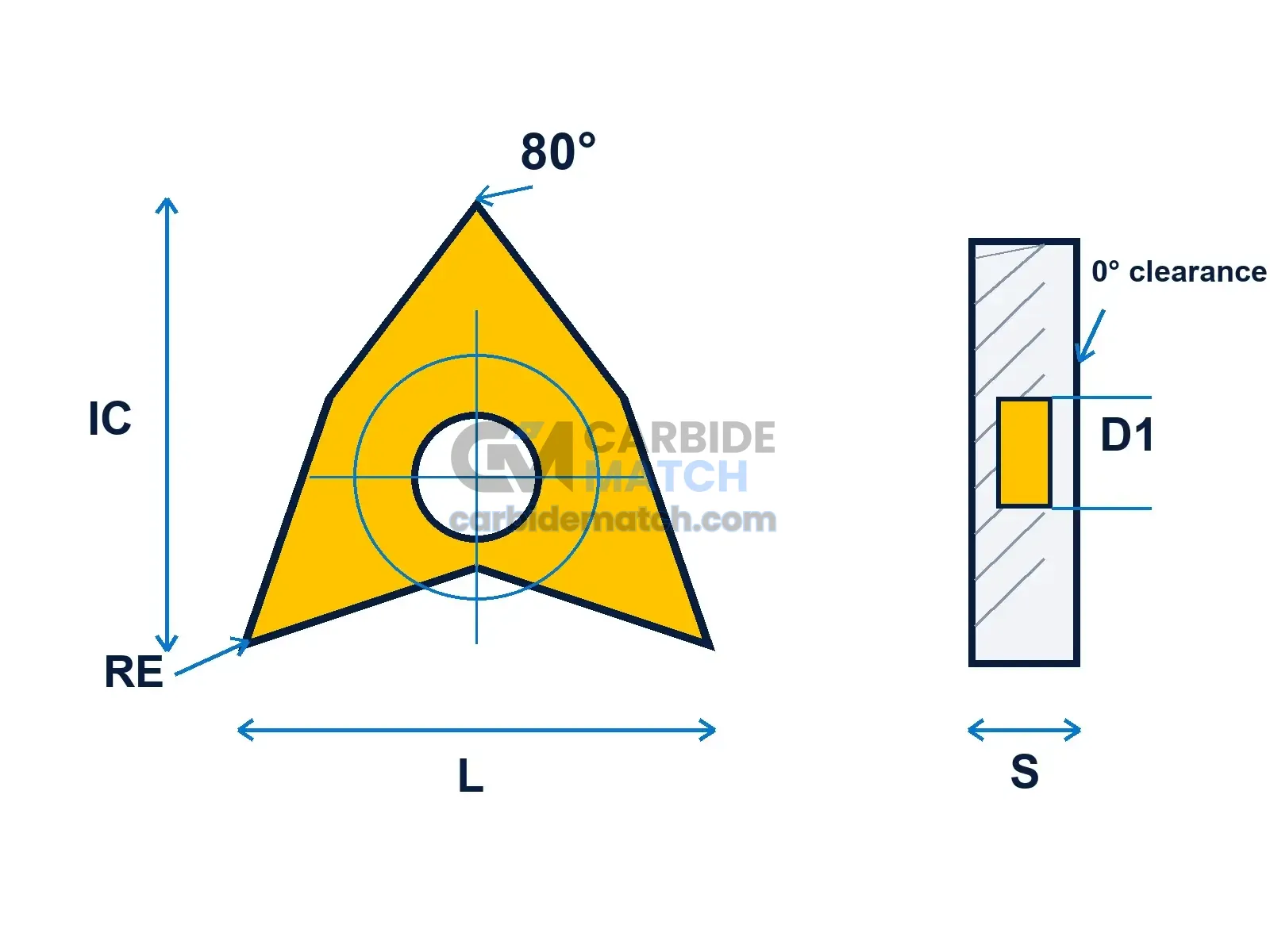

ISO Designation
IC (mm)
S (mm)
RE (mm)
D1 (mm)
WNMG 060304
9.525
3.18
0.4
3.81
WNMG 060404
9.525
4.76
0.4
3.81
WNMG 060408
9.525
4.76
0.8
3.81
WNMG 060412
9.525
4.76
1.2
3.81
WNMG 06T304
9.525
3.97
0.4
3.81
WNMG 06T308
9.525
3.97
0.8
3.81
WNMG 06T312
9.525
3.97
1.2
3.81
WNMG 080404
12.7
4.76
0.4
5.16
WNMG 080408
12.7
4.76
0.8
5.16
WNMG 080412
12.7
4.76
1.2
5.16
WNMG 080416
12.7
4.76
1.6
5.16
WNMG 080608
12.7
6.35
0.8
5.16
Don't See the Configuration You Need?
The configurations shown above represent commonly requested options and may not include everything we can supply. Contact us to check another specification or discuss your custom requirements.
WNMG Insert Applications
WNMG inserts are commonly selected where a strong, economical double-sided edge and stable seating are more important than access into narrow profiles.
External Diameter Turning
Stable longitudinal turning of shafts and cylindrical components under medium cuts.
Facing
General facing operations with a holder approach that provides adequate clearance.
Semi-Finishing
Controlled stock removal with chipbreaker, radius, and feed selected for the material.
Rough Turning
Higher-load turning where the trigon body and double-sided edge provide useful strength.
Interrupted Conditions
Light interruptions when a tougher grade and reinforced edge preparation are specified.
WNMG Insert FAQ
What holder information should accompany a WNMG inquiry?
Provide the holder designation, hand, approach angle, clamping style, and seat condition so insert and holder compatibility can be checked.
When should a smaller WNMG nose radius be considered?
Consider it when cutting force, slender-part deflection, or surface-detail requirements limit the use of a larger radius; confirm feed capability and edge strength.
Can a WNMG wiper geometry be requested?
A wiper-style option can be reviewed, but its availability and feed direction depend on the selected size, hand, chipbreaker concept, and finishing target.
Which inputs are needed to select a WNMG grade?
State the workpiece material and hardness, continuous or interrupted cut, cutting speed, coolant condition, and failure mode of the current insert.
How should WNMG samples be evaluated?
Hold the tool, setup, stock allowance, and cutting parameters constant, then compare tool life, chip control, surface finish, and wear pattern against the baseline.
Can WNMG inserts be made to a customer drawing?
Drawing-based production can be reviewed after confirming ISO seat compatibility, critical dimensions, edge preparation, inspection method, and expected order volume.
