TNMG Inserts Manufacturer & Supplier in China
Source standard and custom TNMG triangular turning inserts for general external turning, facing, profiling, and economical multi-corner machining programs.

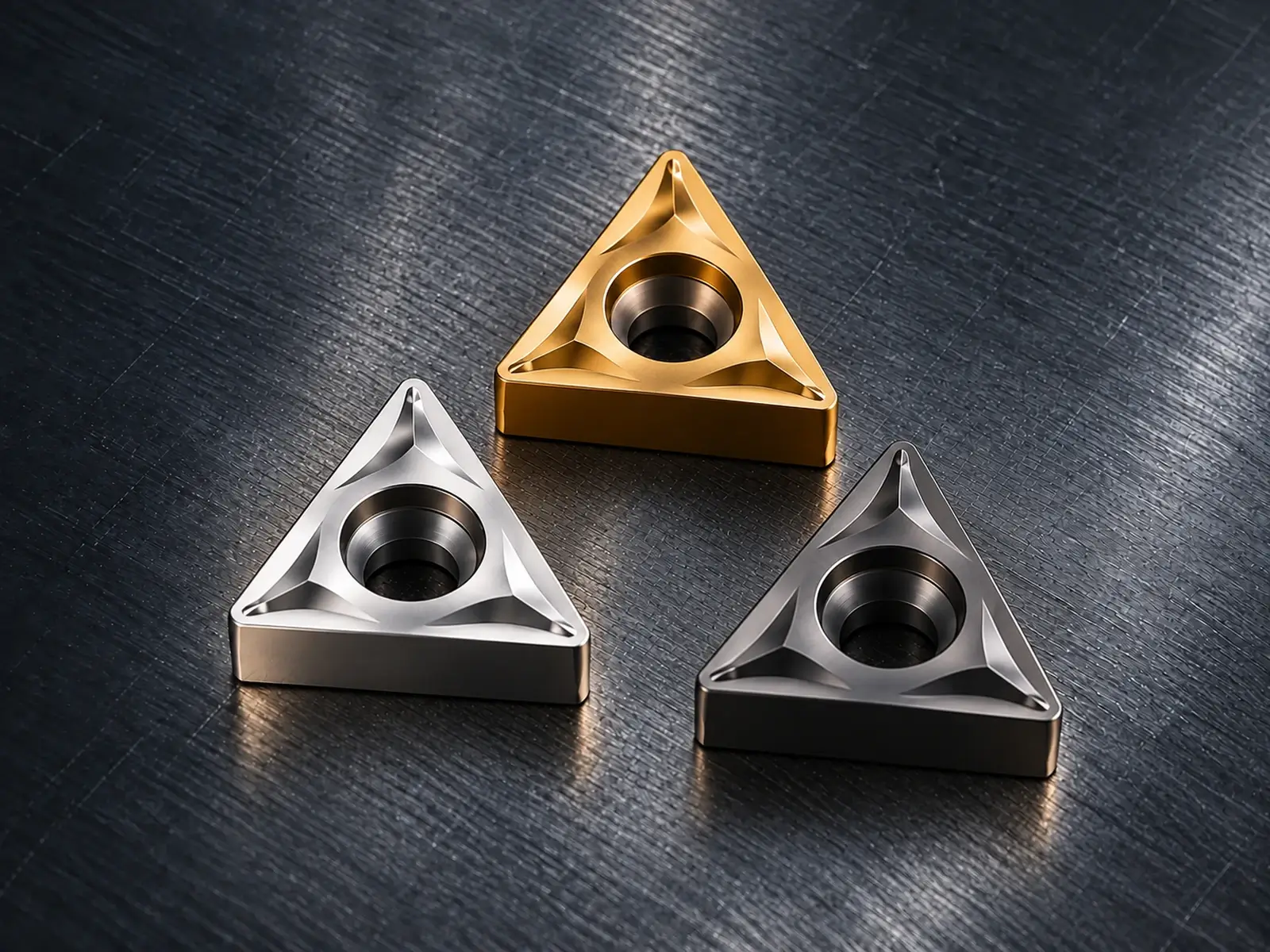

What Is a TNMG Insert?
A TNMG insert is an ISO 60° triangular, 0°-clearance, M-tolerance, double-sided turning insert with a fixing hole and chipbreaking geometry. Its three corners per face provide up to six indexable cutting corners, making it an economical option for compatible general-turning operations when corner strength and profile access match the application.
Key Specifications
Insert Shape
60° triangle
Clearance Angle
0°
Tolerance Class
M class
Insert Configuration
Double-sided with fixing hole; up to 6 corners
Common ISO Sizes
TNMG 1103, 1604, 2204, 2706, 3309
Primary Applications
External turning, facing, profiling, semi-finishing
Custom TNMG Insert Options
Configure the key manufacturing details for your insert application, from dimensions and cutting material to edge condition and identification.
Dimensions & Tolerances
Specify insert dimensions and tolerances according to your drawings.
Cutting Material & Grade
Select insert material and grade to suit your machining application.
Top Geometry & Chip Control
Customize top geometry and chip control features for your cutting needs.
Edge Preparation
Specify edge honing, chamfers and other edge preparation options.
Coating & Surface Treatment
Choose coating and surface treatments to meet your cutting needs.
Marking & Packaging
Customize insert markings and packaging to meet your order requirements.

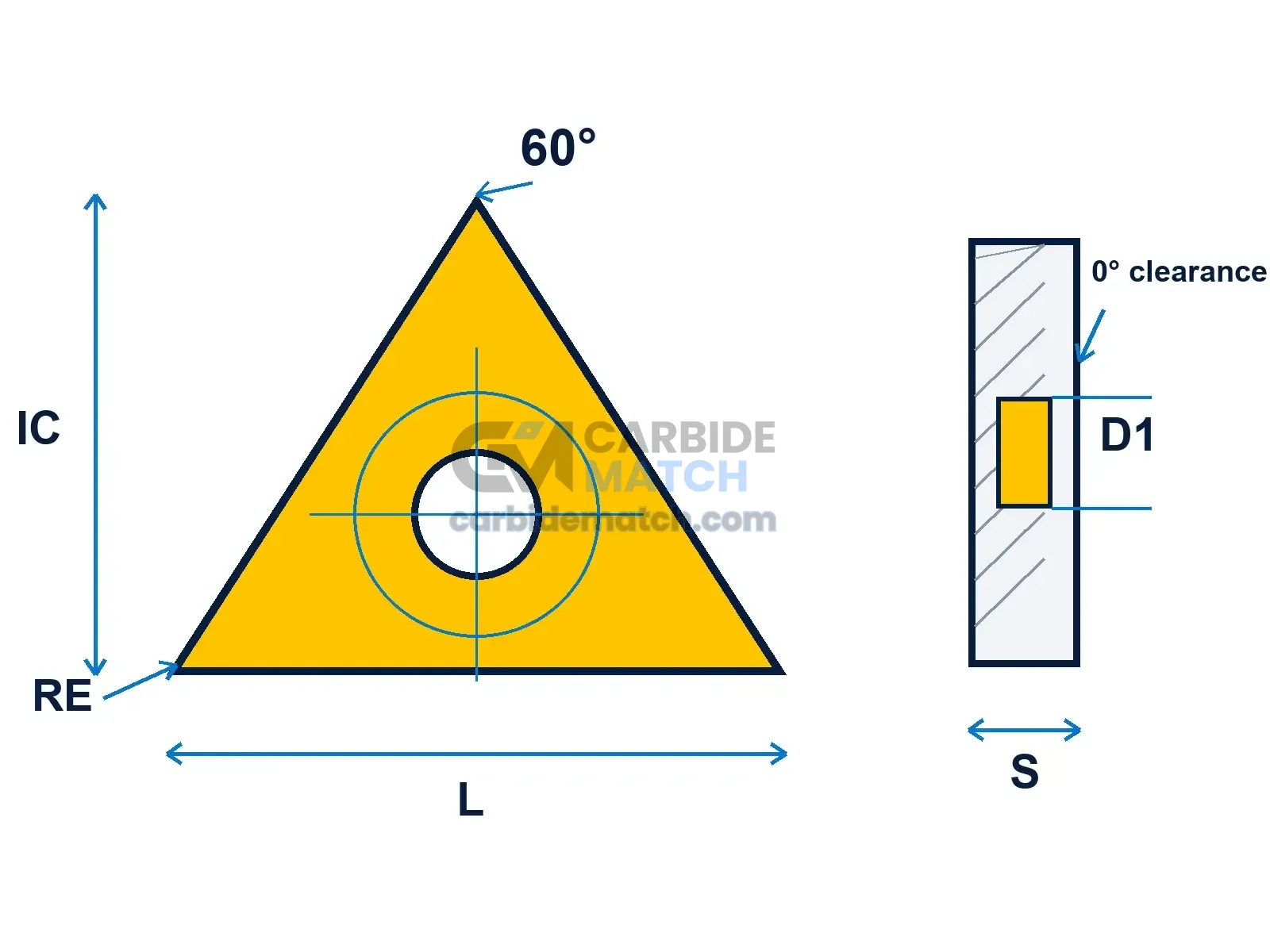

Available TNMG Insert Sizes
CarbideMatch offers TNMG inserts in the standard sizes listed below, with custom dimensions and application-specific configurations available upon request. Send us your required designation, drawing, dimensions, sample, workpiece material, or cutting conditions for technical review and quotation.
ISO Designation
IC (mm)
S (mm)
RE (mm)
D1 (mm)
TNMG 110308
6.35
3.18
0.8
2.26
TNMG 160404
9.525
4.76
0.4
3.81
TNMG 160408
9.525
4.76
0.8
3.81
TNMG 160412
9.525
4.76
1.2
3.81
TNMG 220404
12.7
4.76
0.4
5.16
TNMG 220408
12.7
4.76
0.8
5.16
TNMG 220412
12.7
4.76
1.2
5.16
TNMG 220416
12.7
4.76
1.6
5.16
TNMG 270612
15.875
6.35
1.2
6.35
TNMG 270616
15.875
6.35
1.6
6.35
TNMG 330916
19.05
9.52
1.6
7.94
TNMG 330924
19.05
9.52
2.4
7.94
Don't See the Configuration You Need?
The configurations shown above represent commonly requested options and may not include everything we can supply. Contact us to check another specification or discuss your custom requirements.
TNMG Insert Applications
TNMG inserts are commonly used where multiple indexable corners and triangular access provide an economical solution for compatible turning paths.
External Turning
General longitudinal turning with a holder and cutting data suited to the selected size.
Facing
Facing operations within the permitted holder approach and cut direction.
Profiling
Moderate contouring where the 60° corners provide suitable access.
Semi-Finishing
Medium stock removal with chip control selected for the work material.
Light Roughing
Higher removal within the strength limits of the triangular corner and chosen edge preparation.
TNMG Insert FAQ
When is TNMG preferable to WNMG?
TNMG can offer different profile access and size choices, while WNMG generally provides a broader trigon body; compare holder geometry, corner strength, accessibility, and cost per usable edge.
Why do some TNMG sizes have different thickness codes?
The third and fourth designation positions encode thickness using the ISO system; inserts with the same general shape are not interchangeable unless seat, thickness, hole, and clamp all match.
Can all six TNMG corners be used in one holder?
Both faces may be indexable, but actual corner access depends on chipbreaker handedness, holder design, damage to unused edges, and the operation direction.
What limits TNMG use in heavy interrupted cuts?
The 60° corner has less included carbide than stronger square or 80° forms, so interruption severity, edge hone, grade toughness, feed, and tool support must be reviewed.
What should be supplied for a TNMG equivalency request?
Send the full current designation including suffix, grade, holder, work material, cutting data, wear result, and the performance characteristic that must be matched.
Can TNMG packaging and marking be customized?
Private marking and packaging can be evaluated separately from cutting geometry after confirming traceability content, label format, quantity, and applicable commercial terms.
