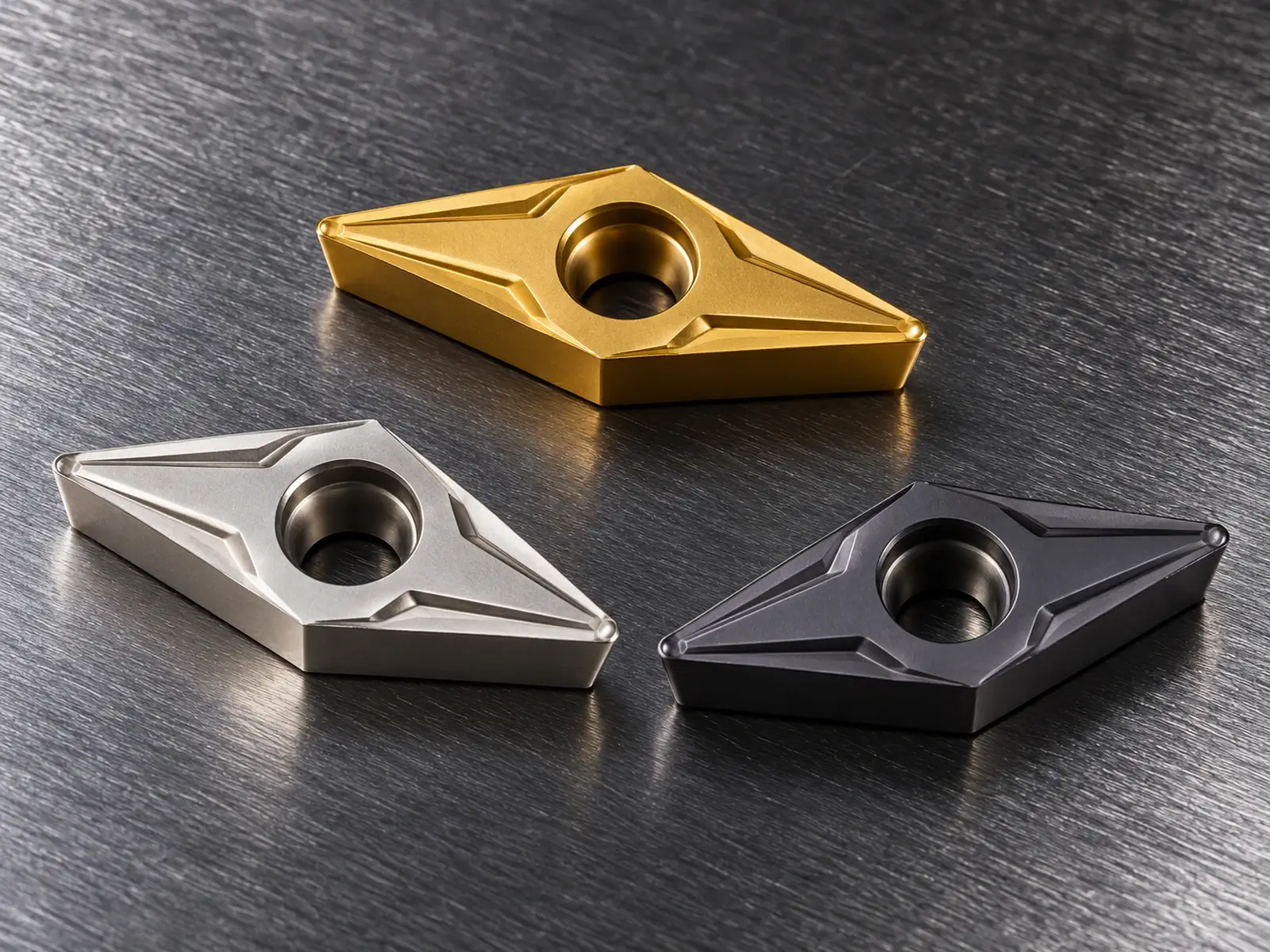

What Is a VBMT Insert?
A VBMT insert is an ISO 35° diamond, 5°-clearance, M-tolerance, positive single-sided turning insert with a fixing hole and chipbreaking geometry. Its acute point and positive flank support access and lower cutting force in finishing and profiling, with two principal corners available from one face.
Key Specifications
Insert Shape
35° diamond
Clearance Angle
5°
Tolerance Class
M class
Insert Configuration
Positive, single-sided with fixing hole; 2 principal corners
Common ISO Sizes
VBMT 1103, 1604
Primary Applications
Precision profiling, finishing, small-part turning
Custom VBMT Insert Options
Configure the key manufacturing details for your insert application, from dimensions and cutting material to edge condition and identification.
Dimensions & Tolerances
Specify insert dimensions and tolerances according to your drawings.
Cutting Material & Grade
Select insert material and grade to suit your machining application.
Top Geometry & Chip Control
Customize top geometry and chip control features for your cutting needs.
Edge Preparation
Specify edge honing, chamfers and other edge preparation options.
Coating & Surface Treatment
Choose coating and surface treatments to meet your cutting needs.
Marking & Packaging
Customize insert markings and packaging to meet your order requirements.
Available VBMT Insert Sizes
CarbideMatch offers VBMT inserts in the standard sizes listed below, with custom dimensions and application-specific configurations available upon request. Send us your required designation, drawing, dimensions, sample, workpiece material, or cutting conditions for technical review and quotation.

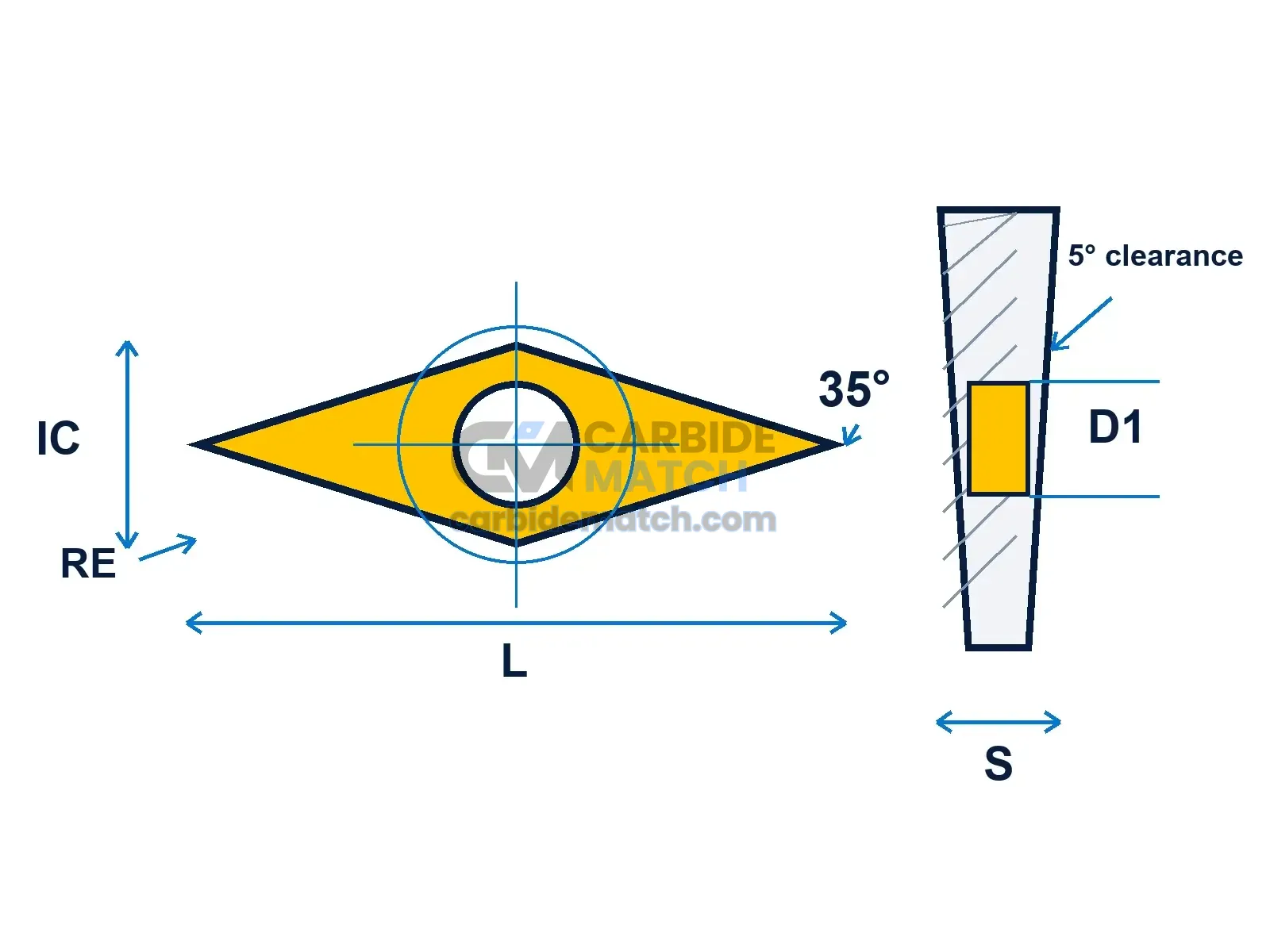

ISO Designation
IC (mm)
S (mm)
RE (mm)
D1 (mm)
VBMT 110304
6.35
3.18
0.4
2.8
VBMT 160404
9.525
4.76
0.4
4.4
VBMT 160408
9.525
4.76
0.8
4.4
VBMT 160412
9.525
4.76
1.2
4.4
Don't See the Configuration You Need?
The configurations shown above represent commonly requested options and may not include everything we can supply. Contact us to check another specification or discuss your custom requirements.
VBMT Insert Applications
VBMT inserts are selected where their verified shape, clearance, and holder access match the cutting path and setup.
Precision Profiling
Fine contours that require access from the 35° point.
Small-Part Turning
Low-force machining of smaller diameters when holder and setup rigidity are limited.
External Finishing
Light cuts with radius, edge sharpness, and feed selected for surface finish.
Back Turning
Reverse-direction profile cuts only where the holder, hand, and toolpath permit them.
Slender Components
Reduced-force turning where deflection control remains essential.
VBMT Insert FAQ
Why must VBMT not be labeled as 0° clearance?
The ISO second letter B denotes a 5° clearance angle; a 0° negative insert would use N in that position.
How should a sharp VBMT edge be protected in handling?
Use individual pockets, avoid loose contact between inserts, keep seats clean, and do not touch unused corners with hard tools.
What controls minimum achievable profile radius?
The insert nose radius, holder geometry, machine interpolation, workpiece deflection, stock, and required finish all contribute.
Can VBMT be used in a DNMG holder?
No substitution should be made from shape alone; clearance style, thickness, hole, seat, clamp, and holder designation must match.
Which data are needed for a finish complaint?
Provide measured roughness, feed, speed, depth, radius, material, runout, rigidity, wear image, and whether built-up edge is present.
Can a polished VBMT geometry be sourced?
A polished sharp-edge option can be reviewed for suitable non-ferrous materials after alloy, finish, coolant, and volume are confirmed.
